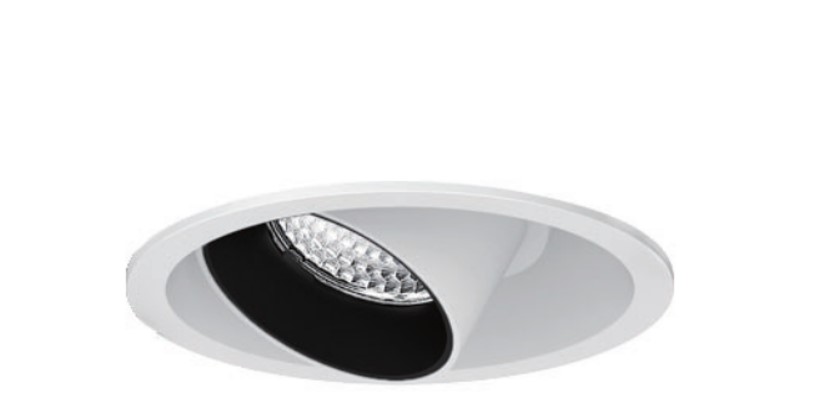

Downlight Gimbal
Semi Recessed Downlight Spot Series perfectly combines the advantages of recessed luminaires and accent lighting fixtures. With easy and flexible installation.In additon, the matte white, powder-coated steel body with UV stabilized polymer diffuser lens is built to outlast the competition
Share to:
Specification
Model：DL-SR-001
Lamp Source: LED
Wattage：6W
Lumen: 450lm
Color Temperature: 2700k/3000k/3500k/4000k/5000k optional
CRI: 80/90 optional
Beam angle: 15°/24°/36°
Life Time: 25000/35000hrs
Vertical Rotation: 60°
Traic Dimming
Finish: Matte White/Black/Grey

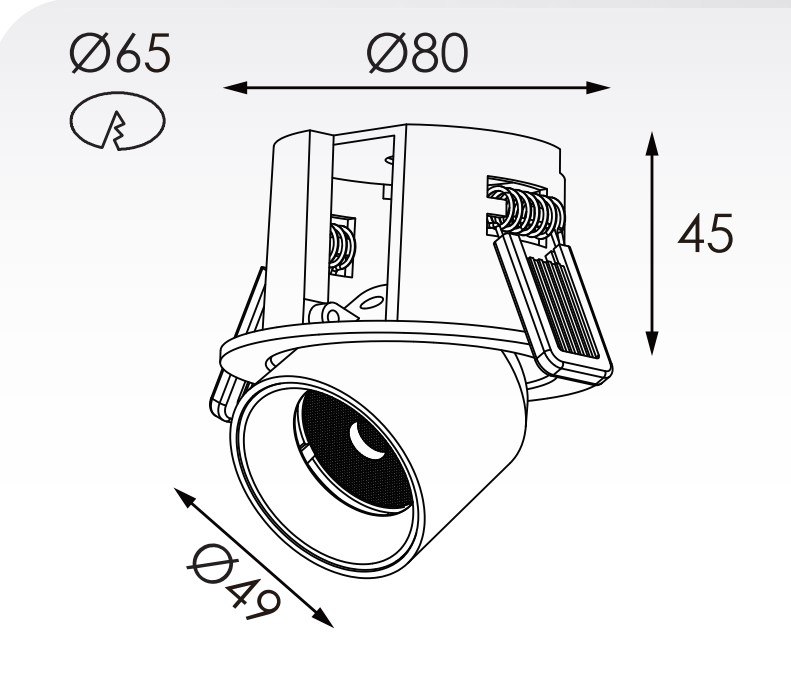

Cut Out：φ65mm
Model：DL-SR-002
Lamp Source: LED
Wattage：10W
Lumen: 990lm
Color Temperature: 2700k/3000k/3500k/4000k/5000k optional
CRI: 80/90 optional
Beam angle: 15°/24°/36°
Life Time: 25000/35000hrs
Vertical Rotation: 60°
Traic Dimming
Finish: Matte White/Black/Grey
Cut Out：φ75mm
Model：DL-SR-003
Lamp Source: LED
Wattage：10W
Lumen: 990lm
Color Temperature: 2700k/3000k/3500k/4000k/5000k optional
CRI: 80/90 optional
Beam angle: 15°/24°/36°
Life Time: 25000/35000hrs
Vertical Rotation: 45°
Horizontal Rotation：355°
Traic Dimming
Finish: Matte White/Black/Grey

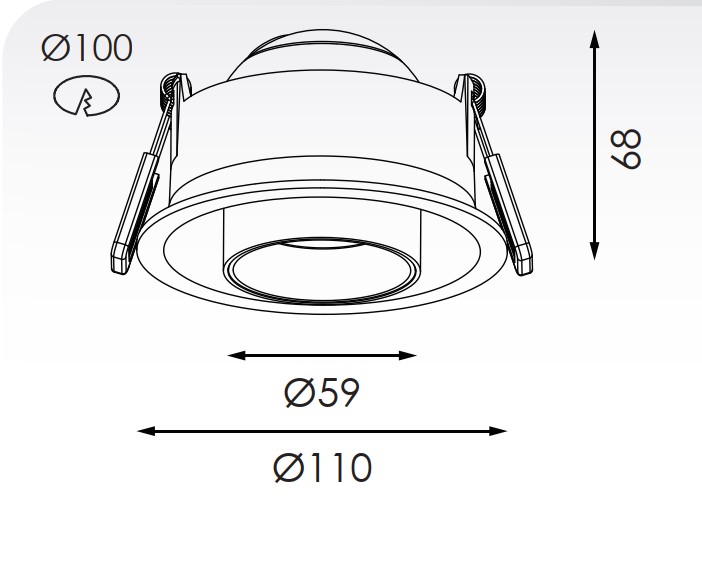

Cut Out：φ100mm
Model：DL-SR-004
Lamp Source: LED
Wattage：20W
Lumen: 2000lm
Color Temperature: 2700k/3000k/3500k/4000k/5000k optional
CRI: 80/90 optional
Beam angle: 15°/24°/36°
Life Time: 25000/35000hrs
Vertical Rotation: 45°
Horizontal Rotation：355°
Traic Dimming
Finish: Matte White/Black/Grey
Cut Out：φ125mm
Model：DL-SR-005
Lamp Source: LED
Wattage：28W
Lumen: 2700lm
Color Temperature: 2700k/3000k/3500k/4000k/5000k optional
CRI: 80/90 optional
Beam angle: 15°/24°/36°
Life Time: 25000/35000hrs
Vertical Rotation: 45°
Horizontal Rotation：355°
Traic Dimming
Finish: Matte White/Black/Grey
Cut Out：φ125mm
